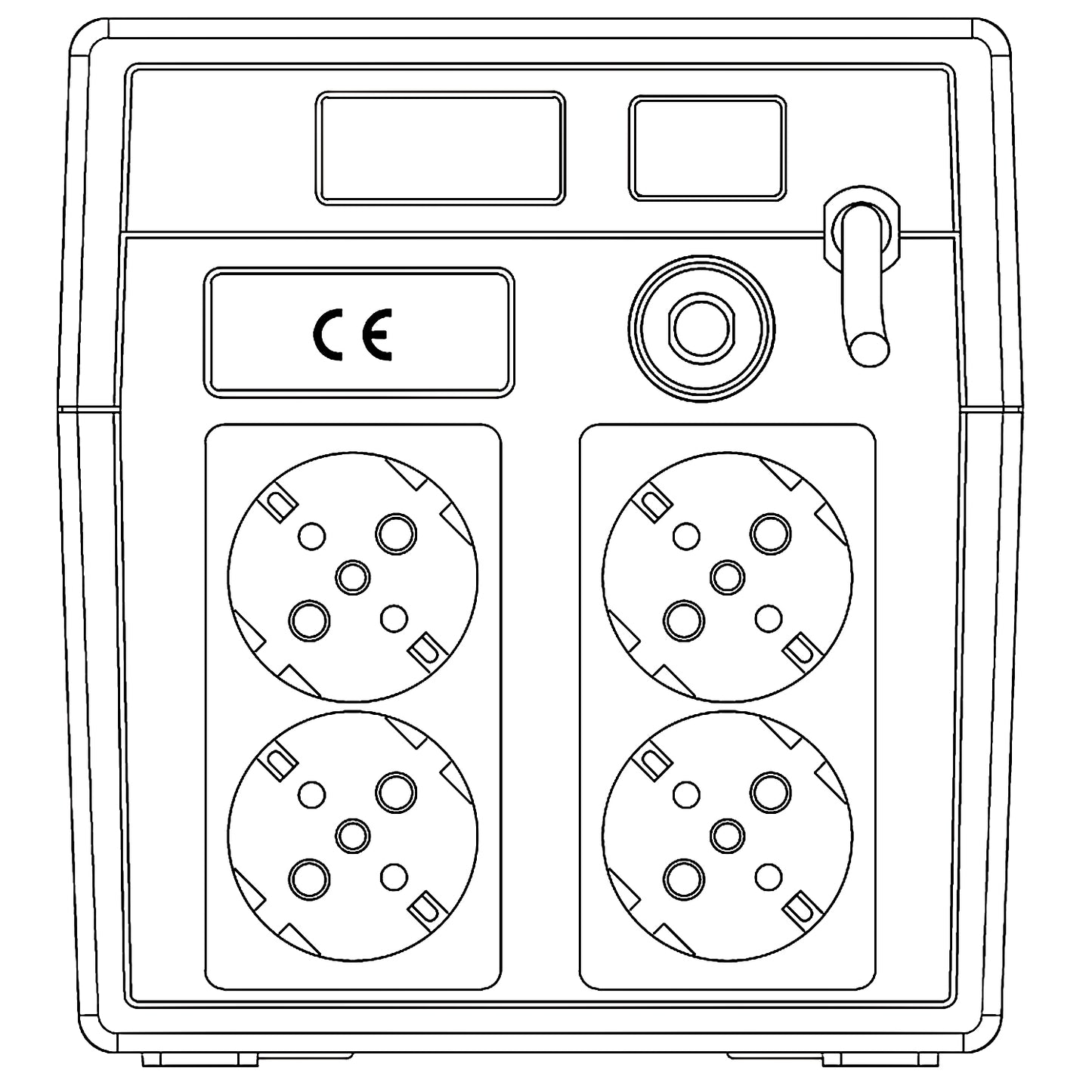

ELSIST Home 1550 UPS Line Interactive 1550VA 930W

The HOME 1550 uninterruptible power supply is equipped with an AVR electronic stabilizer, which guarantees the connected users (both in mains and battery operation) a better current voltage, protection against overloads and short circuits.

Entrance:
- Input voltage: 220-230-240Vac
- Acceptance range: 162-290Vac
- Frequency: 50/60Hz (automatic switching)

Exit:
- Output voltage: 230Vca
- Waveform: Sinusoidal simulated at nominal voltage
- Voltage tolerance: plus or minus 10%
- Frequency: 50/60Hz (same as input frequency)
- Power (VA/W): 1550 / 930
- Switching time: 2-6 mS tpc, 10ms max
- Schuko sockets: 4

Batteries:
- Typical autonomy: 10 minutes
- Battery voltage: 2x 12V/7Ah
- Type: Hermetic Pb
- Charging time: 6-8 hours at 90% after fully discharged

Protection:
- Overvoltage/Undervoltage switching in “Battery operation”
- Overload/Short circuit: Electronic limit (Both for “Mains operation” and “Battery operation”)

Audible alarm:
- Battery mode: 1 time every 10 sec
- Low battery: 1 time per sec
- Overload: 1 time every 0.5 sec
- Fault: continuous

- Dimensions: (WxDxH): 149x338x162 mm
- Noise filtering: Present
