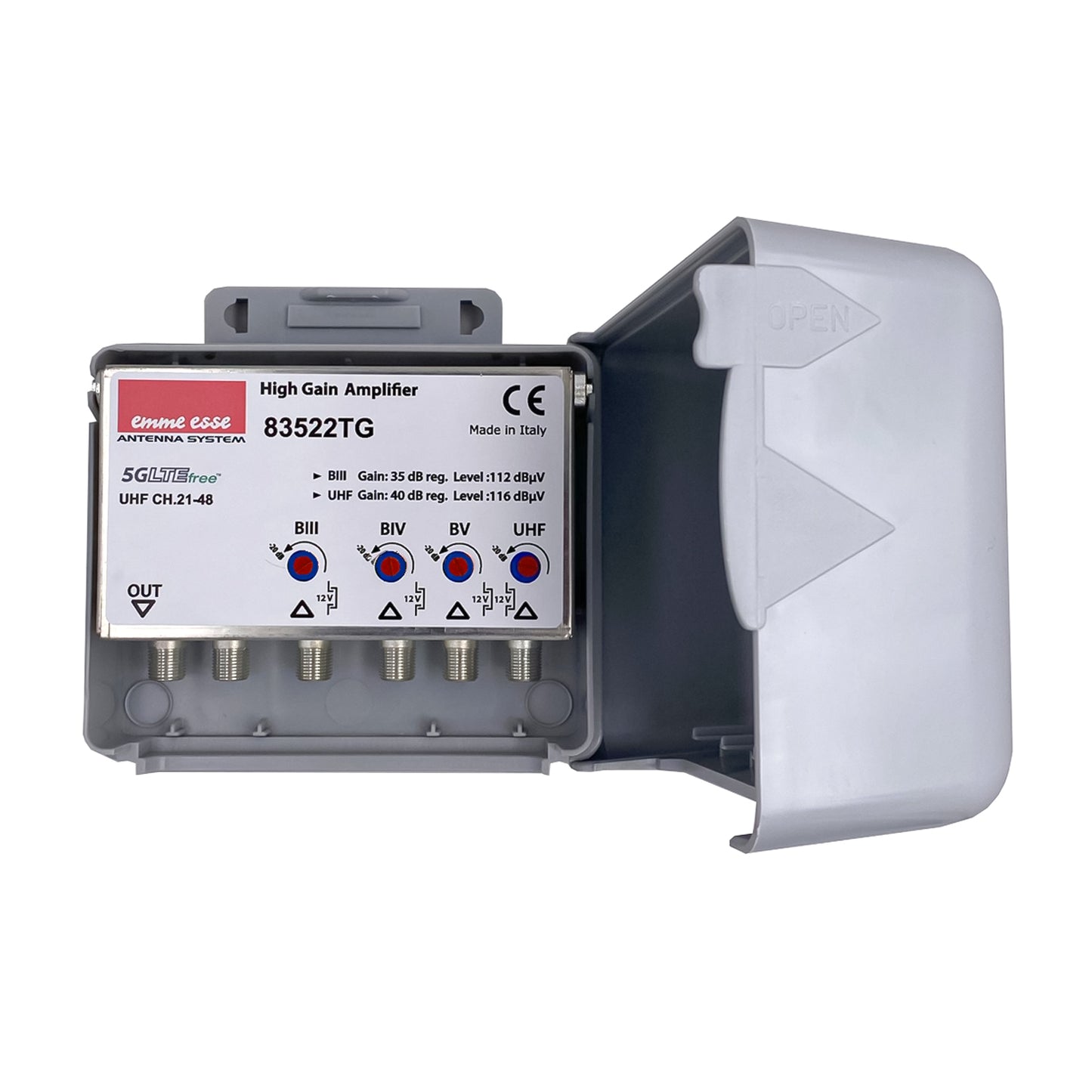

Emme Esse 83522TG VHF-UHF 112-116 dBuV mast amplifier, multiband amplifier, integrated 5G and LTE filter

Specifications:
- Code: 83522TG
- Entrances: 4
- Bands: B.III - B.IV - BV - UHF
- Reg V/U gain: 35/40 dB
- Output level: 113/120 dBuV
- Gain adjustment: 0...15 dB
- Fig. noise: 3/8 dB
- Outputs: 1
- Absorption: 150mA 12V

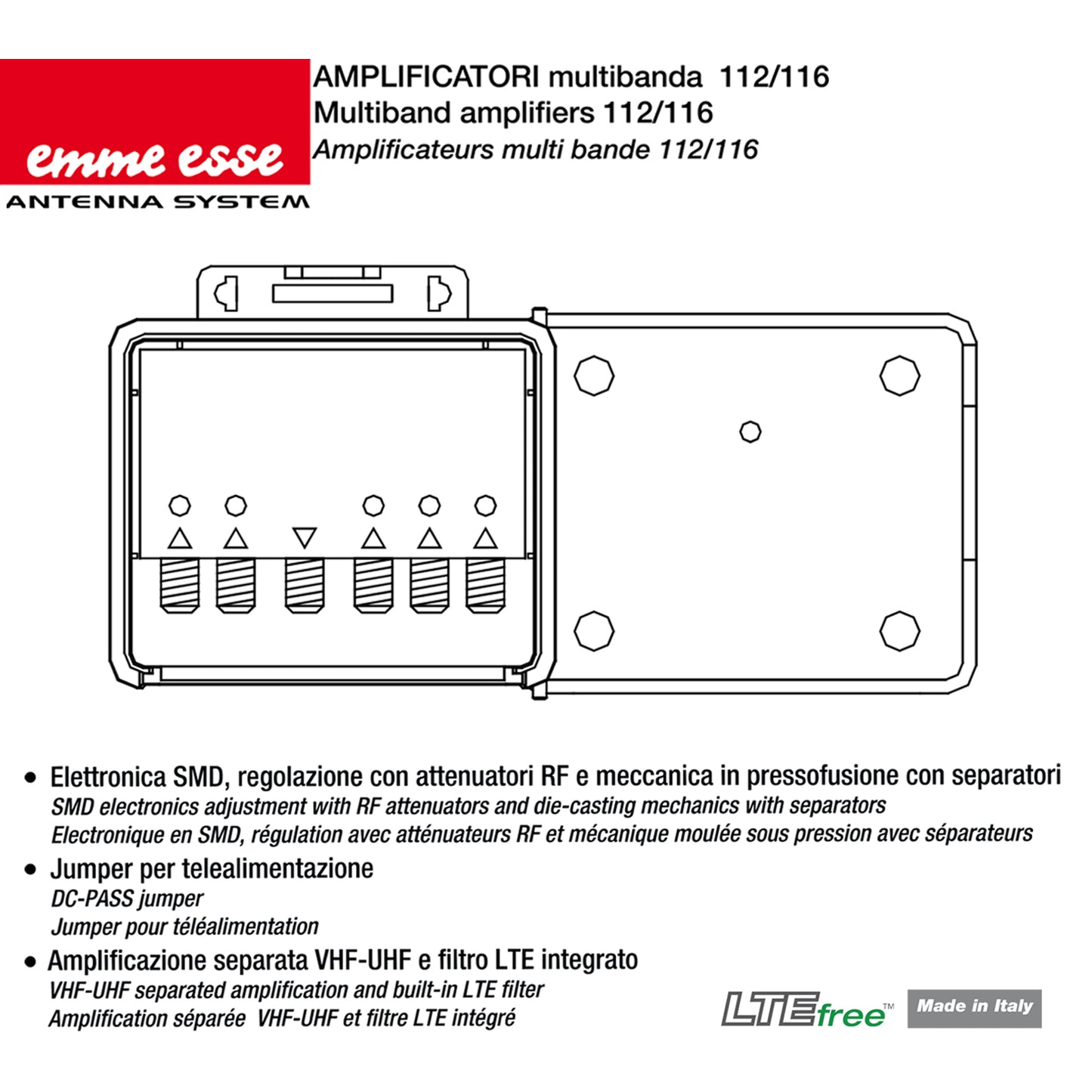

- QUALITY: Top of the range pole amplifiers, assembled in die-cast mechanics with internal separators to maximize shielding between the individual inputs and heat dissipation.
- REMOTE POWER SUPPLY: For each input there is a variable RF attenuator with constant impedance, and a command to enable remote power supply to a possible external preamplifier.
- PERFORMANCE: The performances are of an absolute level. Linearity in the passband, low noise figure, gain up to 40 dB and output level 119dBuV.

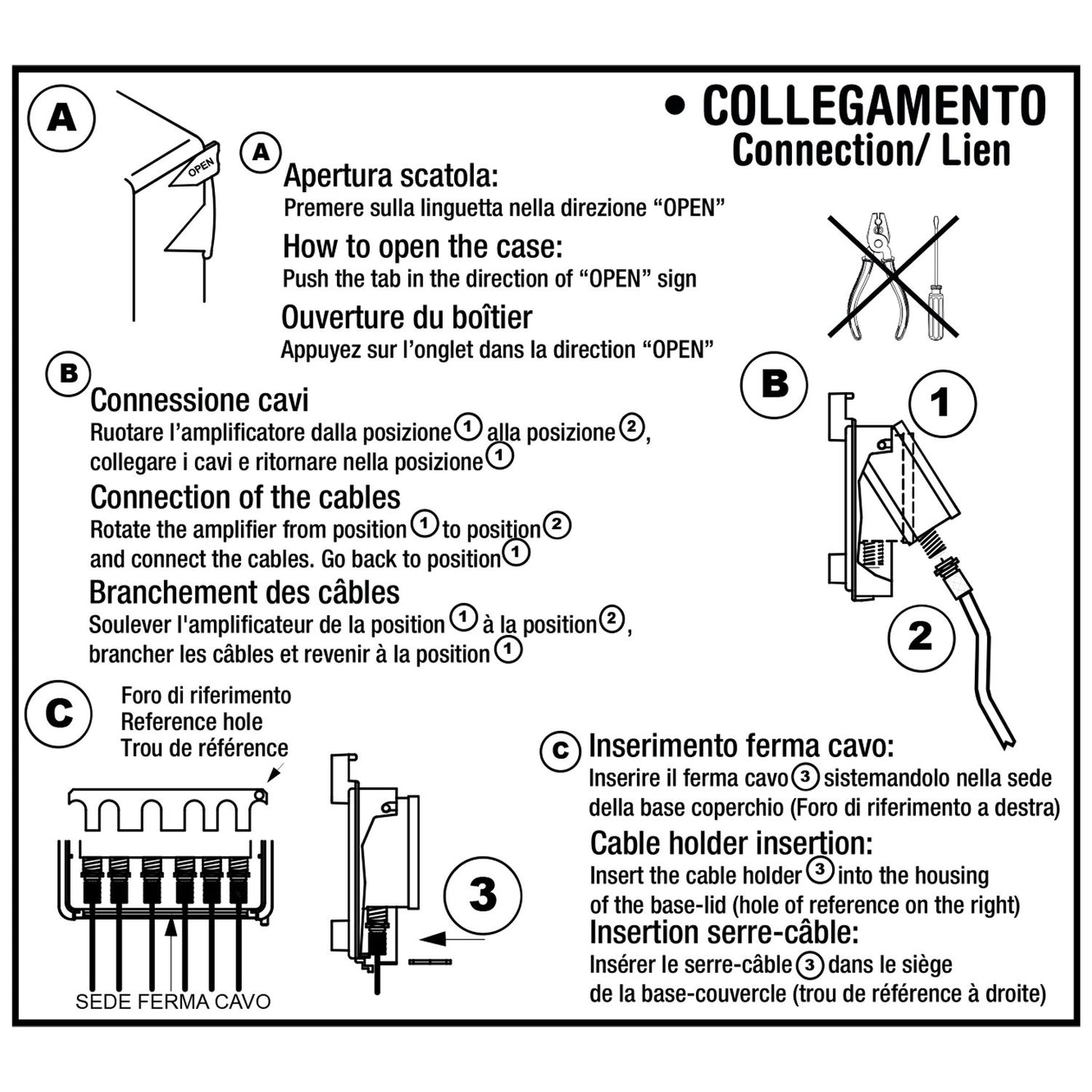

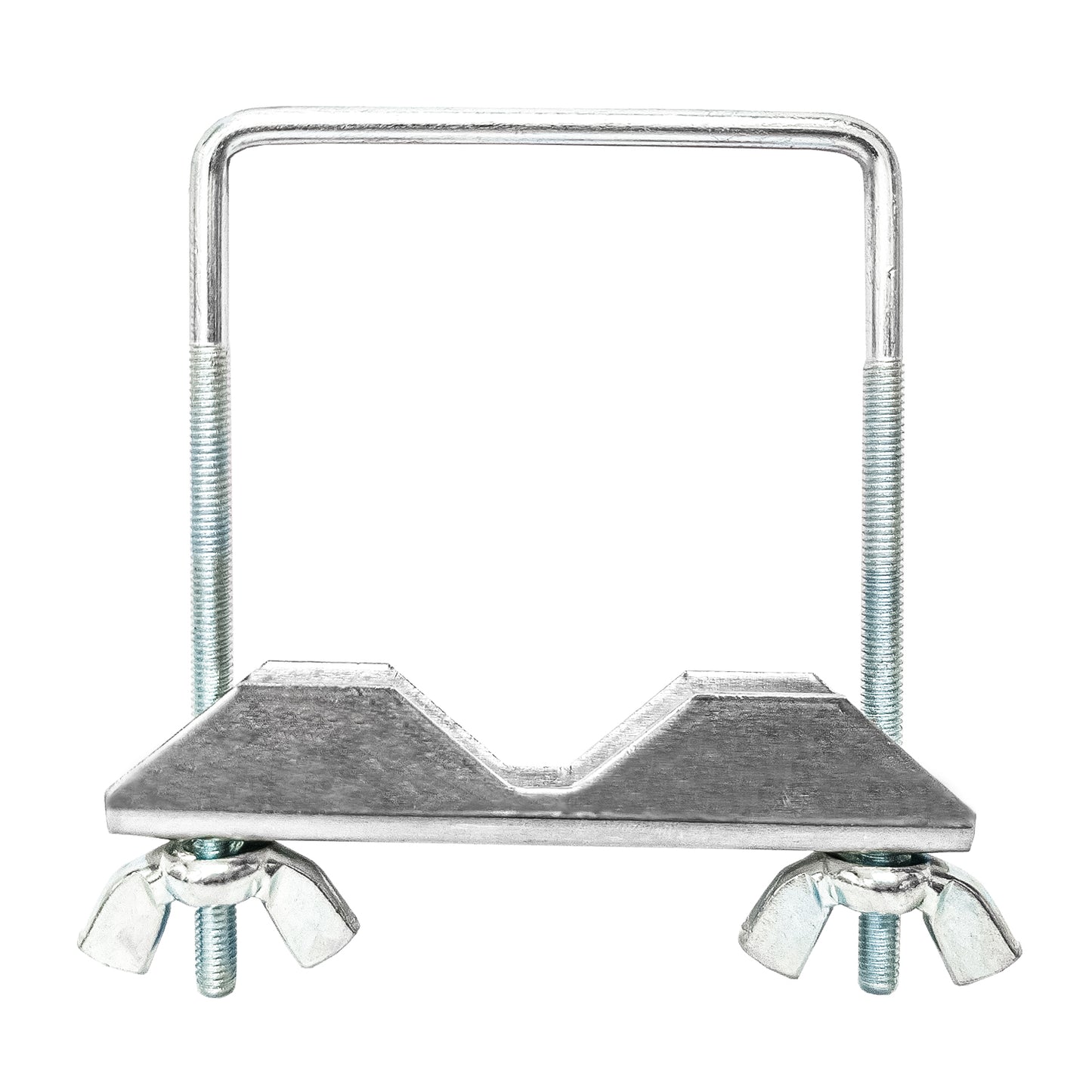

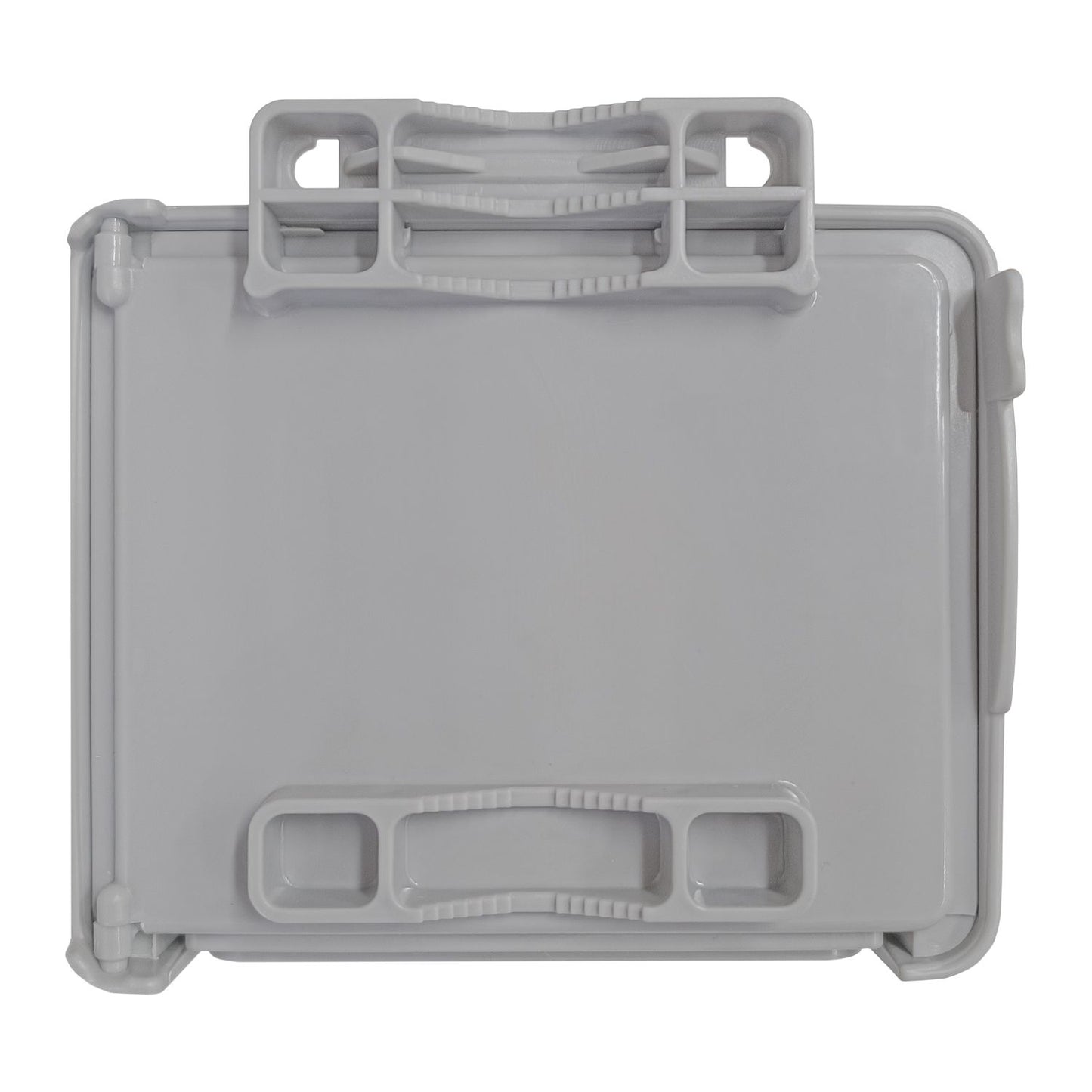

- INSTALLATION: It is supplied with an external impact-resistant plastic protection, and is equipped with a metal clamp for attaching to the pole.
- COMPATIBILITY: Compatible with the new TV standards and thanks to a special selective filter also with the current UHF band reduced to channel 48 following the reassignment of LTE/5G frequencies.
