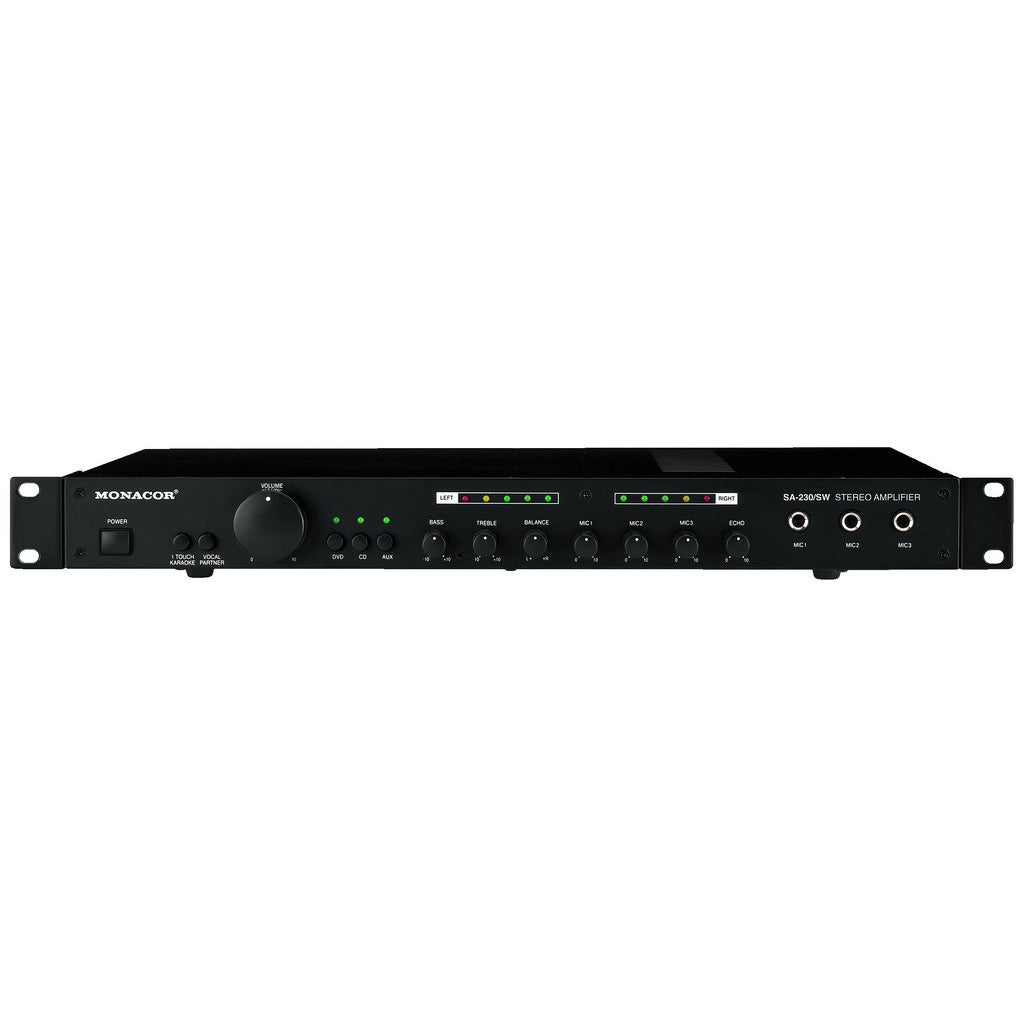

- Sku: SA-230/SW
Monacor Universal Stereo Amplifier, Stereo Mixer Amplifier, Stereo Sound Amplifier, Audio Amplifier, Karaoke Function and Vocal Partner
Universal stereo mixer amplifierSing with us! The very intuitive user interface of the SA-230/SW invites you to listen to music and especially to participate. It is possible to mix one of the three stereo line sources with the three mono sources for microphones without problems. With special karaoke CDs/DVDs, functions such as “one-touch-karaoke” or “vocal partner” are available. An adjustable digital echo can be added as an effect. The fanless cooling of the amplifier ensures silent operation. Modern Protection circuits offer safety against overload, overheating and short circuits.
Specifications:
-Quiet operation thanks to the fanless cooling system.
-3 inputs: stereo line.
-3 inputs: mono microphone, front side, each with gain control.
-Digital echo: adjustable for microphone inputs.
-Function, Karaoke.
-Function, Vocal Partner.
-LED: for modulation and active line inputs.
-Controls for volume: bass, treble, balance and digital echo.
-Output: Stereo record.
-482 mm Rack mount (19"), 1U, with mounting brackets supplied.
-Effective power: stereo 4O 2x25WRMS.
-Stereo 8O: 2x20WRMS.
-Inputs:175mV/8kO (Line)2.5mV/3.5kO (Mic).
-Bandband: 20-20000Hz.
-Digital echo: 200ms.
-Power supply: 230V˜/50Hz/150VA.
-Dimensions: 432x45x275mm.
-Max power: 2x50WMAX.
-S/N ratio: 62dB.
-Bass tone adjustment: 0dBacti 0dB.
-Temp. operating range permitted: 0-40
-Weight: 4kg.
-Code: SA-230/SW
